Update and loading notifications

Overview

Update and loading notifications inform users of the current working state of their request and help reduce uncertainty. These notifications update pre-existing, inline page content.

When not pairing loading and update notifications, remember to create sufficient visual feedback as many update notifications will be unassociated to their triggering actions.

Comparing notification types

	Update notifications	Loading notifications
Priority	Low	Low
Expectancy	Expected & assumed	Expected & assumed
Blocking	Blocking, disabling	Non-blocking
Required	—	Not required
Information	User requested state changes	Passive state changes

Update notifications inform users of the current working state of their request (like quantity updates or busy states). These notifications update a specific part of an inline content section, such as the number of items in a cart.

Their purpose is to:

Communicate the refresh of page data 
Disable a section of a page as new data is presented 
Report the busy status of a page or section

When to use

Incrementing results or items
Adding or removing items from a list
Changing inline content based on user selection

When not to use

The notification relates to an actionable element in a busy state (see loading notifications)
Providing contextual info or confirming that a task or process initiated by the user was completed successfully (see transient status notifications)
Providing errors, warnings or success messaging related to user inputs (see validation notifications)
The content added to the page is critical and needs immediate attention (see alerts)
User interaction is required or content is critical to the user flow (see modal)

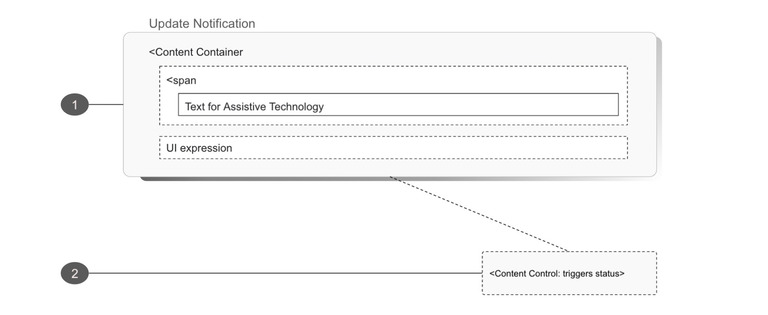

Update notification anatomy

Diagram for conditional notifications as an overlay, annotating the required layout of the elements listed below

1. Container

The update notification content container wraps both the element being updated and any assistive technology helpers such as screen reader text. It may be a pre-existing section of a page or dynamically added upon user action.

Best practices

Ensure the container generating the update can receive focus
Define pre-existing page sections where content may be updated as a WAI-ARIA live region
Ensure the update notification does not receive focus because of a change in status
Ensure sufficient visual feedback is provided to inform users that an update that may not be
associated with the element they have interacted with has been updated
Use the aria-live attribute on the container of the content that may be updated. In special cases, use one of the WAI-ARIA special live region roles:


   <!-- EXAMPLE: while stable -->

   <div aria-live="polite" role="region" aria-labelledby="shopping-cart">

     4
     <span class="sr-only">items in your cart</span>

   </div>


    <!-- EXAMPLE: when updated -->

    <div role="status" aria-live="polite" role="region" aria-labelledby="shopping-cart">

      <span class="sr-only">there are now</span>
      5
      <span class="sr-only">items in your cart</span>

    </div>

What to avoid

Overusing update notifications as they may interrupt the user experience.

Options

The content container may:
Be stacked with a loading notification
Use  role=”status” in place of or in addition to aria-live
Include aria-atomic markup attribute to define what content will be presented to assistive technologies
Include  aria-relevant to define what type of changes are being announced to assistive technologies

2. Control

The update notification content control may be any actionable element, such as a link or button.

Best practices

Use the aria-controls attribute if another part of the page controls what appears in the notification.

What to avoid

Moving focus to the notification automatically.

Options

The content control may:

Open or update content in locations unrelated to the action which caused the notification to appear.

Loading notifications

Loading notifications signal to users that loading is occurring, but do not give any specific indication of progress. Use loading notifications to communicate the busy state of the page or content element. This reassures users that the page is not frozen and their request is in progress.

Their purpose is to:

Update inline messaging 
Provide UI responses to user-initiated actions

Live content section

When to use

Refreshing data in a live region
Loading additional page content
Providing loading icons or states
Informing users that the application is busy

When not to use

The notification does not relate to an actionable element in a busy state.

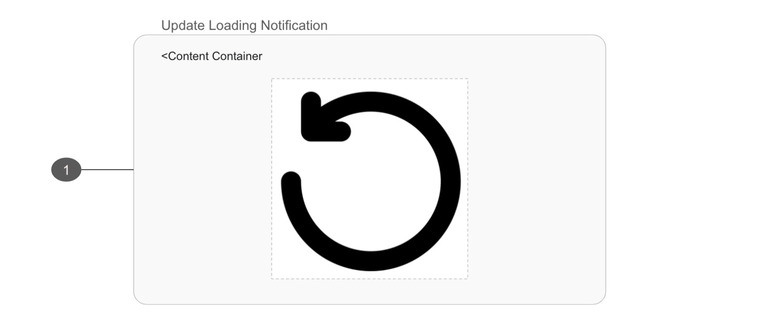

Loading anatomy

Diagram of loading animation annotating the list below

Best practices

Define pre-existing page sections where content may be updated as a WAI-ARIA live region
Use the  aria-busy attribute to indicate an element is being modified. Assistive technologies may want to wait until the modifications are complete before exposing them to the user


<cdr-button :disabled="isLoading"  @click="isLoading = true" aria-controls="updateContainer">

  {{isLoading ? 'Loading...' : 'Add to cart'}}

</cdr-button>



<section role="region" aria-live="polite" :aria-busy="isLoading" id="updateContainer">{{isLoading ? 'This content is being updated...' : 'Live content section'}}</section>

Accessibility

Transitions should notify assistive technology to temporarily ignore changes to an element. Add this in the form of additional element attributes that communicate to assistive technology. Consider if the action without context will create any cognitive dissonance for our visual users.
